Crane Solutions

Industrial Cranes for Factories in Thailand

Overhead, gantry, jib and light crane systems, manufactured in-house by ONVALLA and engineered around your load, span, building and material flow. One team from site survey to installation, load testing and after-sales service.

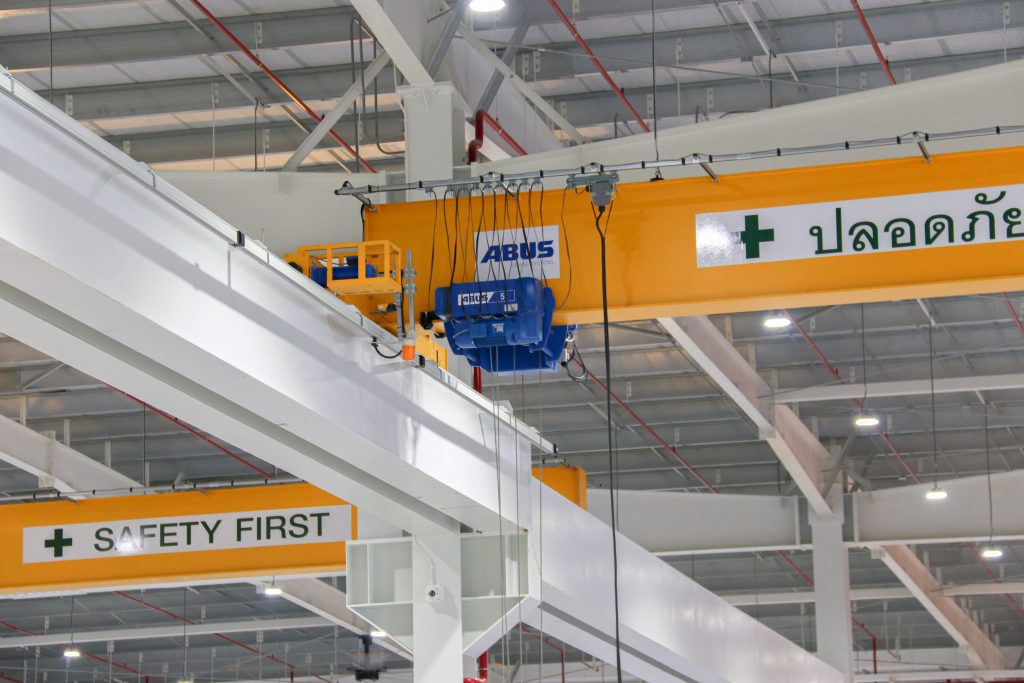

ABUS overhead cranes installed by ONVALLA in a Thai factory

35+

Years of experience, founded in 1990

4,000+

Projects delivered

2006

Sole agent of ABUS Crane Systems in Thailand

ISO

9001 · 14001 · 45001 certified

Overview

Crane solutions engineered for every application

ONVALLA manufactures its own crane systems in-house at its factory in Lam Luk Ka, Pathum Thani, designed around your lifting requirements, operating conditions, building structure and material flow, and engineered to comply with European and applicable international crane standards.

Main girders are designed to German DIN standards, with QA and QC at every production stage. From standard overhead cranes to customized lifting systems, each crane is integrated with the right hoist and built for safe, reliable and efficient operation.

In short

  • Crane types: single and double girder overhead, underslung, gantry, semi-gantry, lightweight mobile gantry, jib, wall travelling, light crane systems and special cranes.
  • Hoists: ABUS (ONVALLA is the sole authorized distributor in Thailand) or EGON, matched to load and duty class.
  • Service: design, manufacturing, installation, load testing, maintenance and modernization, including cranes from other brands.

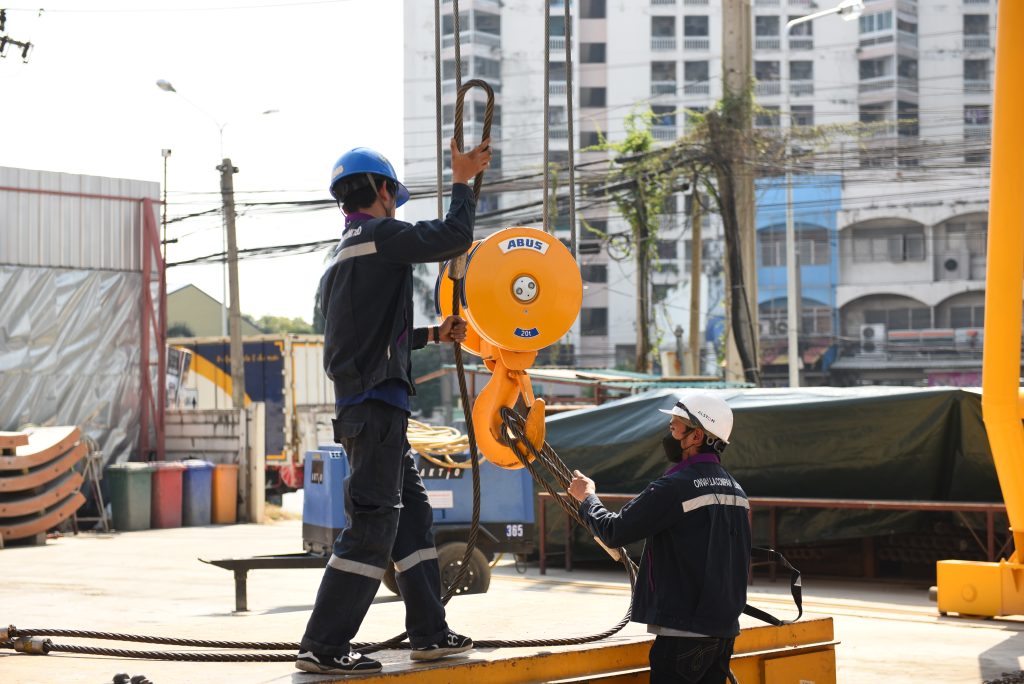

ONVALLA crane installation team at work on site

Crane Types

Crane types by application

The right crane depends on more than lifting capacity. Our engineers consider capacity, span, lifting height, duty class, operating speed, building structure, available space, working environment and material flow.

01

Overhead cranes

Run on a runway along the building, covering the full width of the hall without using floor space.

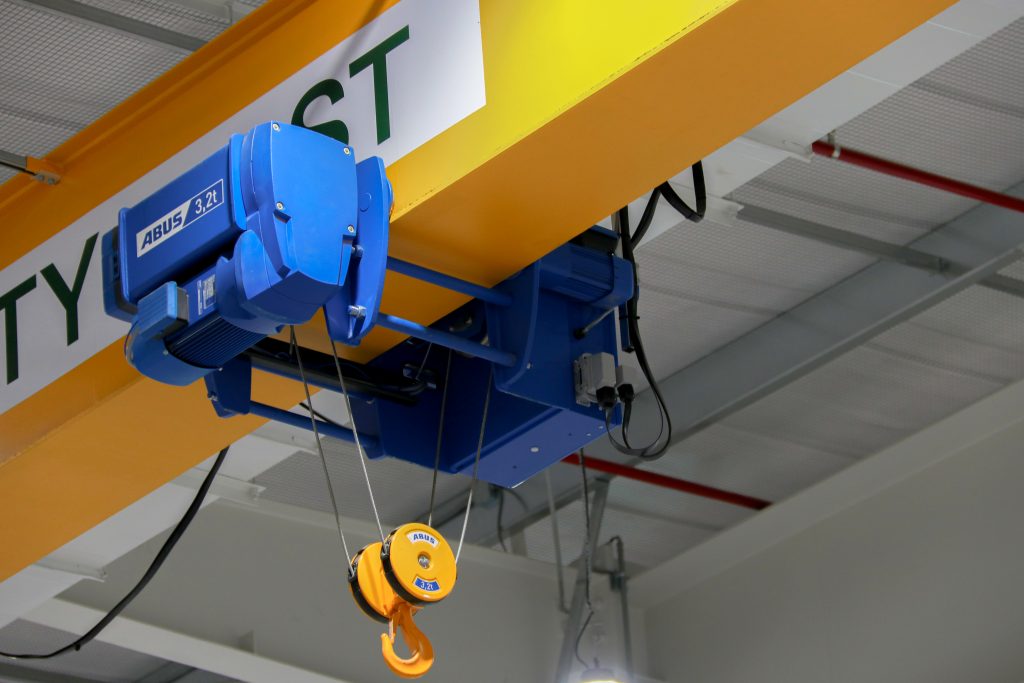

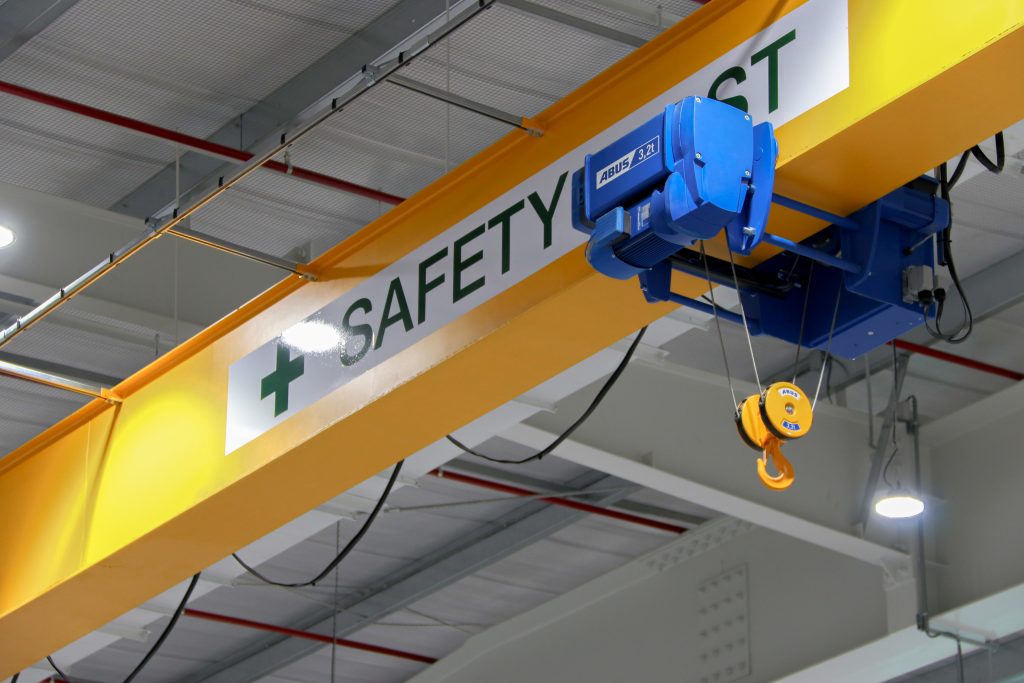

Single girder overhead crane with ABUS hoist

Light to medium duty

Single Girder Overhead Crane

A practical and efficient solution for light to medium-duty lifting, offering reliable operation and effective use of available space.

Typical applications: Manufacturing · Warehousing · Assembly · Workshops · Maintenance

Double girder overhead crane

Higher capacity

Double Girder Overhead Crane

Designed for higher capacities, longer spans, greater lifting heights and demanding duty cycles, with room for specialized lifting equipment.

Typical applications: Heavy manufacturing · Steel · Machinery · Automotive · Process industries

Underslung crane suspended from the building structure

Suspended from the roof

Underslung Crane

Suspended from the building structure, in single or double girder design, where floor space is limited or runway columns are not suitable.

Typical applications: Production areas · Assembly lines · Workshops · Existing buildings

02

Gantry cranes

Stand on their own legs, for outdoor yards and halls without a building-supported runway.

Outdoor gantry crane in a storage yard

Indoor and outdoor

Gantry Crane

Operates on its own supporting structure, a flexible lifting solution where overhead crane runways are unavailable or impractical.

Typical applications: Storage yards · Fabrication · Outdoor handling · Production facilities

ONVALLA single girder semi-gantry crane

One leg, one runway

Semi-Gantry Crane

A building-supported runway on one side and a floor-supported leg on the other, where a full overhead or gantry configuration is not required.

Typical applications: Production areas · Warehouses · Workshops · Building extensions

ABUS lightweight mobile gantry crane

Mobile

Lightweight Mobile Gantry Crane

A lightweight gantry that gives a chain hoist mobility, so the lifting point can move to where the work is.

Typical applications: Moving a chain hoist between work areas

03

Workstation cranes

Local lifting at machines, assembly stations and maintenance points.

Pillar-mounted and wall-mounted jib cranes

Pillar or wall mounted

Jib Crane

A compact solution for localized lifting around individual workstations, machines, assembly areas and maintenance locations.

Typical applications: Workstations · Machine loading · Assembly · Maintenance · Workshops

Wall travelling crane pictogram

No floor space used

Wall Travelling Crane

Runs along an elevated runway on the building structure and can operate independently beneath a larger overhead crane.

Typical applications: Production lines · Assembly areas · Workstations · Machine handling

Modular light crane system over workstations

Modular

Light Crane System

Monorails, single-girder systems or complete workstation crane systems for smooth, ergonomic handling of lighter loads.

Typical applications: Assembly lines · Production · Workstations · Component handling

Crane radio remote control and controls engineered by ONVALLA

04 · Engineered to order

Special & Customized Crane

For applications beyond standard configurations, ONVALLA develops lifting systems around the load, operating process, working environment and specific technical requirements.

  • Special structures
  • Synchronized lifting
  • Automation and specialized controls
  • Purpose-designed lifting attachments

Example: the Electric Overhead Side Crane, an ONVALLA special design that extends out of the building to lift loads from below into the hall, then retracts so the door can close as normal.

Selection Guide

Which crane fits your facility?

A quick starting point. Our engineers confirm the final choice after a site survey.

Your situationCrane to consider
Light to medium loads across a production hallSingle girder overhead crane
Heavy loads, long spans, high lifting height or a demanding duty cycleDouble girder overhead crane
Limited floor space, or runway columns are not possibleUnderslung crane
Outdoor yard, or no building-supported runwayGantry crane
A runway is possible on one side onlySemi-gantry crane
Lifting at one machine or workstationJib crane
A second lifting zone under an existing overhead craneWall travelling crane
Frequent handling of lighter parts along a lineLight crane system
A chain hoist that needs to move between work areasLightweight mobile gantry crane
None of the aboveSpecial & customized crane

Not sure which crane you need?

Send us the load, span, lifting height and how often you lift. A crane specialist will recommend a configuration.

ABUS electric wire rope hoist and electric chain hoist

Hoist Integration

Every crane is engineered together with the right hoist

The hoist, trolley, crane structure, electrical system and controls are designed to work as one complete lifting solution.

  • ABUS electric wire rope hoists and electric chain hoists, made in Germany. ONVALLA is the sole authorized ABUS distributor in Thailand.
  • EGON electric chain hoists, electric wire rope hoists and electric winches, with a European-standard control system.
  • Controls and accessories where they earn their place: radio remote controls, variable speed drives, automation and positioning systems, anti-collision devices and below-the-hook attachments.

How We Work

From site survey to handover

One team takes your crane from the first site visit to lifelong service.

  1. Consultation & site survey Workflow, building conditions and installation constraints.
  2. Engineering & design Capacity, span, lifting height, speed, duty class and safety requirements engineered to your application.
  3. Manufacturing Crane structures built in our own factory, with QA and QC at every stage.
  4. System integration Crane integrated with the hoist, electrical system, controls and safety devices.
  5. Installation & testing Mechanical and electrical installation, load testing and Por Jor. 1 (ปจ.1) documentation where required by law.
  6. Lifecycle support Preventive maintenance, repair and modernization to keep you running.

Standards and quality

European standards

Engineered to European and applicable international crane standards.

DIN girder design

Main girders designed to German DIN standards.

ISO certified

ISO 9001, ISO 14001 and ISO 45001.

Load tested

Every installation load tested before handover.

Industries we serve

  • Manufacturing
  • Automotive
  • Steel & Metal
  • Machinery
  • Petrochemical
  • Power plants
  • Cement & building materials
  • Warehousing & Logistics

Project References

Crane projects in Thailand

Design, installation and relocation of crane systems for Thai industry.

After-Sales Service

Service built to prevent downtime

A crane going down is a stopped line and a delayed order. ONVALLA’s after-sales team supports cranes from every brand on your site, not only the systems we build.

  • Preventive maintenance & inspection: mechanical, electrical, structural and safety checks before issues cause downtime.
  • Load test: load testing and performance inspection to confirm operational readiness.
  • Spare parts: replacement parts for various crane brands to reduce lead times.
  • Repair, refurbishment & modernization: fast-response repair and upgrades for existing equipment.
  • Annual service contract & operator training: systematic maintenance planning and safe-operation training.
ONVALLA after-sales service technicians maintaining a crane

FAQ

Crane questions

What types of cranes does ONVALLA supply in Thailand?

Single girder and double girder overhead cranes, underslung cranes, gantry and semi-gantry cranes, lightweight mobile gantry cranes, jib cranes, wall travelling cranes, light crane systems, and special or customized cranes. ONVALLA designs, manufactures, installs and services them in Thailand.

Does ONVALLA manufacture its own cranes?

Yes. ONVALLA manufactures its crane systems in-house at its factory in Lam Luk Ka, Pathum Thani, with main girders designed to German DIN standards and QA and QC at every production stage.

What is the difference between a single girder and a double girder crane?

A single girder crane suits light to medium-duty lifting and is more space- and cost-efficient. A double girder crane handles higher capacities, longer spans, greater lifting heights and more demanding duty cycles.

When should I choose a gantry crane over an overhead crane?

Choose a gantry crane when a building-supported runway is not available or practical, such as in outdoor storage yards or fabrication areas, because it runs on its own supporting structure.

What is an underslung crane used for?

An underslung crane is suspended from the building structure, in single or double girder design. It suits areas where floor space is limited or runway columns are not suitable.

Which hoists are used on ONVALLA cranes?

ONVALLA integrates ABUS hoists, as the sole authorized ABUS distributor in Thailand, or EGON hoists, matched to your load, duty class and operating environment.

How do I know which crane my facility needs?

ONVALLA engineers assess capacity, span, lifting height, duty class, operating speed, building structure, available space, working environment and material flow during a site survey, then recommend a configuration.

Is the crane load tested after installation?

Yes. ONVALLA load tests the crane to verify operational readiness and safety before handover, and prepares Por Jor. 1 (ปจ.1) documentation where required by law.

Does ONVALLA service cranes from other brands?

Yes. The after-sales team services, refurbishes and modernizes cranes from other manufacturers already installed at your site, subject to equipment condition and service requirements.

How do I request a crane quotation?

Call (+66) 02-193 5380-5, email info@onvalla.com, chat on LINE or send the form on the Contact Us page. A crane specialist will review your requirements.

Let’s find the right crane solution

Tell us what you need to lift, where it needs to move and how your operation works. Our engineers will recommend the right crane and hoist configuration.

Tel. (+66) 02-193 5380-5 · Email info@onvalla.com
